Working in space presents a unique environment. No gravity to hold things down, extreme temperature fluctuations and radiation are just some of the problems. Astronauts must repair space stations and satellites, using specially designed tools, but repairs can take days.
Initial Sketches
I started sketching a bunch of kinetic movements, as that seemed to be the weakest link in older space design was range of motion. I was focused on a few key concepts, mobility, interchangeability, and simplicity. From the sketches I dialed in that a cylinder would be the most efficient shape to base my prototypes off.
Initial Prototypes
After initial research, I began designing and prototyping small function models for the toolbox. I initially explored a twisting helical screw rail for opening, but after the prototypes, found that there was too much resistance and swapped to a sliding straight rail for the opening mechanism. My research also highlighted that one of the largest problems with working in space is the bulky space suit, which can limit an astronaut to less than 30% of their range of movement and dexterity. I developed a number of handle prototypes out of foam specifically designed for bulky suit gloves.
Aesthetic Research
Because most of the space tools were designed at the end of the 70’s, there is not a very specific design language to follow. After much Sci-Fi oriented aesthetic research, most of the designs fell into two categories; smooth, organic design with neutral colors, or very industrial, function over form, design. I chose the latter when designing and printing these prototypes, also refining the color choices for the final product.
Refined Models
After function studies and aesthetic models I developed these models that combined the two. The top lid of the box twists-to-lock in place, preventing accidental opening. The slots on the side are designed to accommodate extendable feet that can fold out for support on rough terrain, and the bottom removable cap is magnetic and, magnetically anchoring the box to surfaces, and prevent nuts and bots from floating away in microgravity.
Final Sketches

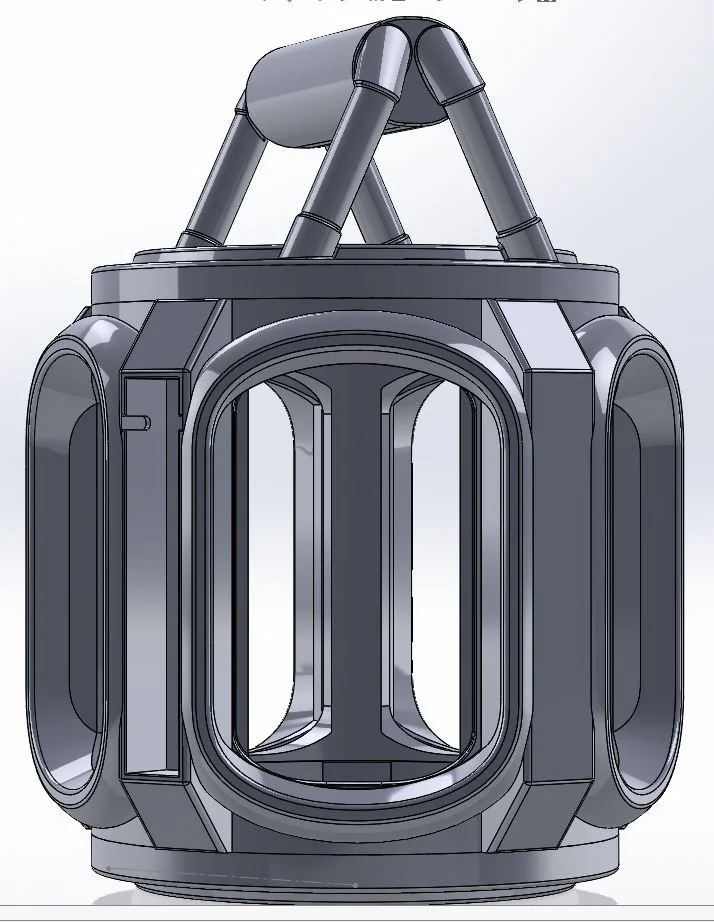

Final Model
